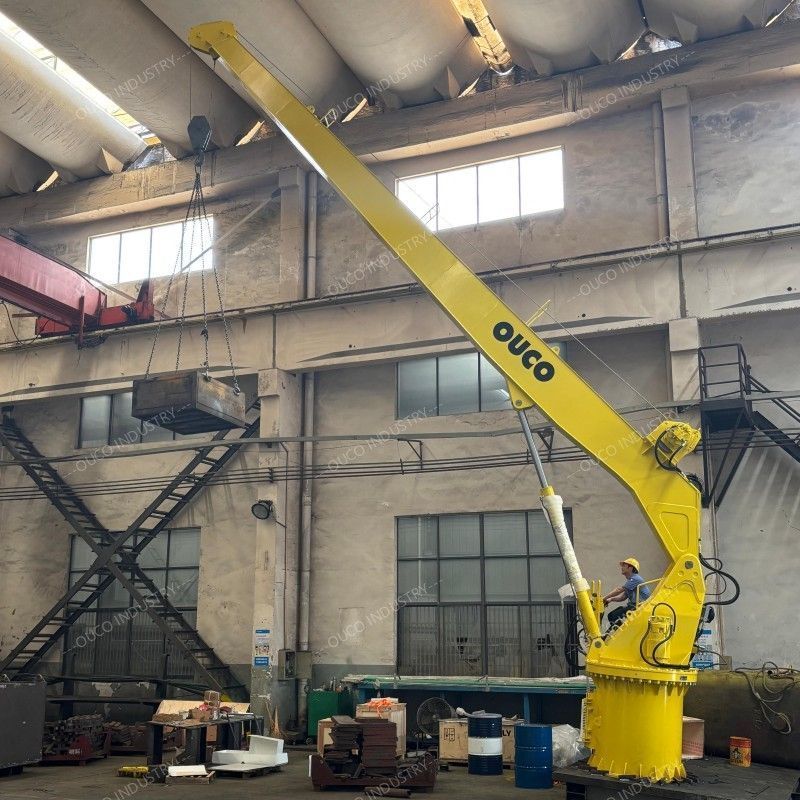

2.6T Offshore Stiff Leg Crane
OUCO 2.6T 9.6M offshore stiff leg crane with a rigid straight boom design, working radius from 2.5m - 9.6m, it offers a simple structure that is easy to operate, reduces training costs, and improves efficiency. This streamlined design also simplifies servicing and maintenance, reducing downtime and operational expenses for the customer. It was developed for an Indian port service company whose operations cover both port and fishing vessel services. Designed primarily for deploying and retrieving fishing nets along the shoreline, this model reflects OUCO’s ability to customize cranes to meet specialized customer requirements.
Engineered for exceptional reliability, the crane’s structure is built to withstand twice the normal load standard—well beyond the typical 1.25 safety factor used in standard designs. Because the crane bases were cast directly at the port, stability under double the overturning moment was also ensured, guaranteeing safe and steady operation in demanding conditions.
OUCO’s technical team addressed these challenges with optimized structural design, reinforced high-strength steel, and strict quality inspections. The result is a crane that not only meets the client’s unique operational needs but also demonstrates OUCO’s expertise in advanced engineering solutions.
To ensure long-lasting performance in corrosive marine conditions, the cranes are coated with a CX-grade marine paint system. Applied in three layers—primer, intermediate, and topcoat—with a total thickness of 300 microns after SA 2.5 sandblasting, this protective coating provides robust resistance against wear, rust, and saltwater exposure, significantly extending service life.
Operator safety is a top priority. The crane is equipped with an independent emergency stop system, allowing immediate braking in case of unforeseen issues. This feature provides an added layer of security and peace of mind during critical operations.
Like all OUCO cranes, the 2.6T 9.6M Stiff Leg Crane can be further customized to match the client’s operational needs. For more details on available configurations, please feel free to contact us.
Parameters
| No. |
Parameter Category |
Specification |
| 1 |
SWL |
2.6T |
| 2 |
MAX. WORKING RADIUS |
9.6m |
| 3 |
MIN. WORKING RADIUS |
2.5m |
| 4 |
HOISTING SPEED |
~12m/min |
| 5 |
HOISTING HEIGHT |
25m |
| 6 |
SLEWING SPEED |
~0.6r/min |
| 7 |
SLEWING ANGLE |
360° |
| 8 |
LUFFING TIME |
~45S |
| 9 |
WORKING CONDITION - HEEL |
<5° |
|
WORKING CONDITION - TRIM |
<2° |
| 10 |
WIND SPEED |
20m/s |
| 11 |
ELEC. MOTOR - Model |
Y180L-4-H |
|
ELEC. MOTOR - POWER |
22kW |
|
ELEC. MOTOR - SPEED |
1470r/min |
|
ELEC. MOTOR - POWER RESOURCE |
AC380V/50HZ |
|
ELEC. MOTOR - PROTECT CLASS |
F |
|
ELEC. MOTOR - WORKING TYPE |
S1 |
| 12 |
OIL FLOW |
40L/min |
| 13 |
DESIGN TEMP. |
-10°~45° |
GA Drawing
Product Picture
Production Process
About OUCO Company
Founded in 1984, OUCO INDUSTRY is a leading manufacturer of high-quality marine equipment, specializing in cranes, lifting systems, and material handling solutions. With over 40 years of experience, we are recognized for delivering innovative and reliable products tailored to the maritime industry. Our products are trusted by clients globally, including those in the luxury yacht, offshore, port, and industrial sectors.
Our state-of-the-art facility in Jiangsu Province, China, spans 48,000 square meters and is home to over 150 skilled professionals. We are dedicated to ensuring that every product we deliver meets the highest standards of quality, performance, and safety.
Our Team
Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand |
OUCO |
| Spare parts |
1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty |
1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing |
container |
| Delivery |
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months |
